REFRIGERATION SYSTEMS

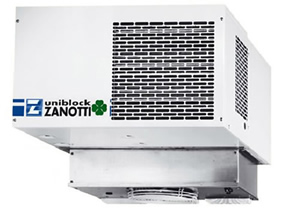

Zanotti Drop In Refrigeration / Freezer Units

The units are available in medium and low temperature format and rated up to 45 °C ambient temperature thus ensuring they are suitable for the harshest of conditions.

  • Single Phase Power (240v)
  • C-tick compliant
  • Low Noise Fully
  • Self contained
  • No drainage required - unit incorporates condensate vaporisation system.
  • Reduced electrical supply required due to hot gas defrost on all models.
  • Coldroom bulkhead light and prewired connection supplied with each unit.
  • Digital controller incorporating anti short cycle timer and defrost termination.
  • Both medium and low temperature units rated to 45 °C ambient.
  • R404A refrigerant used in all systems
  • Three pin plug fitted to all units
  • Prewired for door sensor (and door heater on low temperature models)
  • 1 year warranty

Digital Controller with easy to use interface programmable according to system requirements Main funtions include:

  • Adjustment of thermostat
  • Entering work setting
  • Automatic manula defrost
  • Evaporator facs start delay
  • Pause after defrost to drain condensation water
  • Sensor breakdown alarms
  • Coldroom light control
  • Protection on number or pressure swithc cut-ins

Refrigeration (Med Temp) Units


Model MSB125T MSB225N MSB225T MSB135N MSB135T
Normal Refrig Capacity (watts) 1450W 2080W 2450W 3270W 4400W
Nom HP 0.75hp 1hp 1.2hp 1.9hp 2hp
Refrig Type R404a R404a R404a R404a R404a
Defrost Type Hot Gas Hot Gas Hot Gas Hot Gas Hot Gas
Electrical V/Ph 240/1 240/1 240/1 240/1 240/1
Run Amps 5A 6.3A 7A 10A 12.3A
Full Load Amps 8.4A 12A 12.5A 19.7A 23.9A
Phase Single Single Single Single Single
Control Type Electronic Electronic Electronic Electronic Electronic
Weight 59kg 74kg 75kg 92kg 98kg

Freezer (LowTemp) Units
Model BSB125T BSB225T BSB135T
Normal Refrig Capacity (watts) 1190W 1690W 2480W
Nom HP 1.7hp 2hp 3hp
Refrig Type R404a R404a R404a
Defrost Type Hot Gas Hot Gas Hot Gas
Electrical V/Ph 240/1 240/1 240/1
Run Amps 5.6A 7.7A 7.5A
Full Load Amps 9.1A 21.1A 22A
Phase Single Single Single
Control Type Electronic Electronic Electronic
Weight 68kg 87kg 102kg
