MODULAR ROOMS

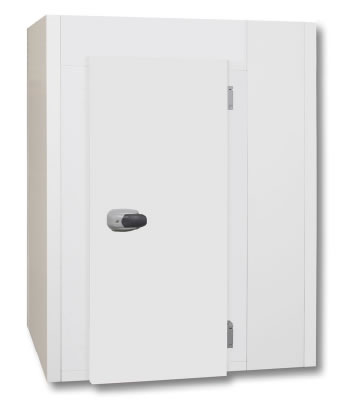

Matrix II Modular Room

Matrix II is an innovative modular coolroom or freezer room system being the result of significant research effort involving professional refrigeration experts from several countries.

It offers practical and professional solutions to the conservation and storage needs of hotels, restaurants, catering companies, shops and industrial kitchens.

The Matrix II range was developed to combine:

  • Aethetics and Quality
  • Ease of transport and assembly
  • Economical price and low energy consumption
  • Easy maintenaince
  • Energy saving polyurethane panels

Environment and Service
Matrix II is manufactured from environmentally materials using cutting edge machinery that ensures permanent levels of quality. Panels are packed flat ready for shipping and assembly

Assembly and Disassembly
The Matrix II modular rooms are assebled from the inside allowing you to take maximum advantageof the available space and height. The wall and roof panels clip together so assembly time is reduced and manpower is kept to a minimum.

Panels and Doors
The outer face is galvanised sheet steel lacquered in 0.5mm (white, reference 1006, similiar to RAL 9002). Bewtween the steel plates, a rigid polyurethane foam is injected with a 40 W-2 kg/m density and a 85mm thickness, free from CFCs and HCFCs. During manufacture, reinforced plastic casings are fitted for assembly with the verticle and floor panels.

Pressure Balancing Valve (for freezer rooms)
A difference of interior and exterior temperatures of a coolroom causes a vacuum effect, making it difficult to open the door. The pressure balancing valve equalises these pressures and removes and vacuum effect for easy door openings.

Heated Door Frame (for freezer rooms)
To prevent frosting around the door seals, the Matrix II freezer room comes standard with a heated circuit around the door fram, ensuring easy opening and closing.

Features

  • Coldroom, Freezer Room or Wine Cellar
  • Unique Cam Locks for Quick Assemble and Dismantle
  • White powder coated galvanised steel cladding is used on walls and ceiling 85mm
  • High density polyurethane panels 85mm
  • High density polyurethane door
  • Wide door opening for easy access
  • Standard right hinge (Reversible)
  • Floor is reinforced, food safe with resin finish
  • Assembly in under 3 hours!
  • Full installation instructions provided

Optional extras

  • Available with or without floor
  • Shelving Strip Curtain
  • Freezer rooms provided with a "negative temperature door"
  • Safety pressure relief valve


Matrix II Modular Room without floor
Code M2CR1814 M2CR1818 M2CR1826 M2CR2222 M2CR2626 M2CR3034
Size 1.8m x 1.4m 1.8m x 1.8m 1.8m x 2.6m 2.2m x 2.2m 2.6m x 2.6m 2.6m x 2.6m
Height 2.430m high 2.430m high 2.430m high 2.430m high 2.4m high 2.430m high
Door Opening 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m

Matrix II Modular Room with floor
Code M2CR1814F M2CR1818F M2CR1826F M2CR2222F M2CR2626F M2CR3034F
Size 1.8m x 1.4m 1.8m x 1.8m 1.8m x 2.6m 2.2m x 2.2m 2.6m x 2.6m 2.6m x 2.6m
Height 2.4m high 2.4m high 2.4m high 2.4m high 2.4m high 2.4m high
Door Opening 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m

Matrix II Modular Freezer Room with heated door
Code M2FR1814F M2FR1818F M2FR1826F M2FR2222F M2FR2626F M2CR3034F
Size 1.8m x 1.4m 1.8m x 1.8m 1.8m x 2.6m 2.2m x 2.2m 2.6m x 2.6m 2.6m x 2.6m
Height 2.4m high 2.4m high 2.4m high 2.4m high 2.4m high 2.4m high
Door Opening 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m 1.9 x 0.8m
