REFRIGERATION SYSTEMS


Zanotti Split System Refrigeration Units

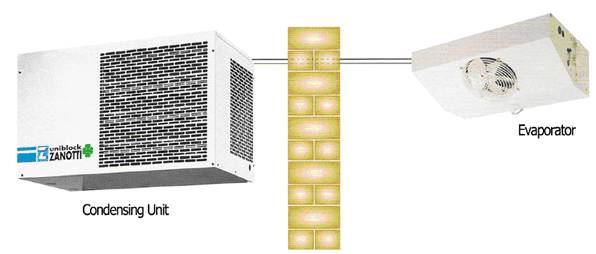

The main characteristic of the Zanotti Spit System Refrigeration unit is that it is made up of two components - the Condensing Unit, which is mounted on the ceiling or floor outside the coldroom, and the Evaporator which is mounted on the ceiling on the inside of the coldroom.

The Zanotti Split System Refrigeration unit is delivered, ready to use, tested and pre-charged with refrigerant (condensing unit and the evaporator, 2.5 metres connection tubing).

  • Ideal for Coldrooms, Wine Rooms etc.
  • Extremely fast to assemble with quick connection joints
  • Minimise installation costs and times.
  • High efficiency in compact dimensions

Digital Controller with easy to use interface programmable according to system requirements Main funtions include:

  • Adjustment of thermostat
  • Entering work setting
  • Automatic manula defrost
  • Evaporator facs start delay
  • Pause after defrost to drain condensation water
  • Sensor breakdown alarms
  • Coldroom light control
  • Protection on number or pressure swithc cut-ins
Refrigeration (Med Temp) Units
Model MSP121T MSP221N MSP221T MSP135T
Nominal Refrig Cap  1145W 1964W 2232W 3950W
Temp. Range  -5 to +10'C -5 to +10'C -5 to +10'C -5 to +10'C
Wine Temp Range +7 to +18'C +7 to +18'C +7 to +18'C +7 to +18'C
Refrig type  R404a R404a R404a R404a
Defrost Type  Electric Electric Electric Electric
Electrical V/Ph  240/1 240/1 240/1 240/1
Run Amps 5.4A 6.3A 6.9A 12.4A
Full Load Amps  6.2A 12A 12.4A 24A
Control Type  Electronic Electronic Electronic Electronic
Gross Weight 56kg 78kg 80kg 98kg

Freezer (LowTemp) Units
Model BSP221N BSP135N BSP135T
Nominal Refrig Cap  1425W 2102W 2453W
Temp. Range  -15 to -25'C  -15 to -25'C  -15 to -25'C
Refrig type  R404a R404a R404a
Defrost Type  Electric Electric Electric
Electrical V/Ph  240/1 240/1 240/1
Run Amps 6.1A 6.3A 11.3A
Full Load Amps  11.9A 12.5A 26.5A
Control Type  Electronic Electronic Electronic
Gross Weight 80kg 100kg 106kg
