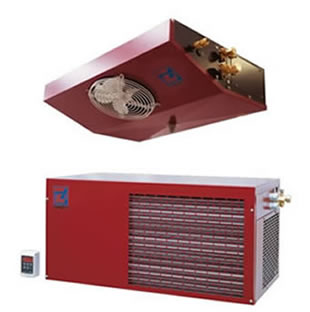

Zanotti Split System WineBlock

The Zanotti Wineblock air treatment unit offers an innovative solution to the owners of natural or adapted wine cellars, creating the ideal environment to exalt the expression and unique character of your wines. The Zanotti Wineblock guarantees the care and attention that wines of high quality require to transmit new and intense emotions at each encounter.


  • Appropriate humidity through humidification and dehumidification
  • Permanent and constant air circulation
  • Absence of vibrations
  • Noise reduction through soundproofing of the compressor
  • Low energy consumption
  • Automatic air defrosting
  • Ready for use, tested and guaranteed, for small and medium sized spaces
  • The electronic control box, easy to use and already programmed, allows full control over the functionality of the machine


Model RDV101-CM RDV102-CM RDV201-CM RDV202-CM
Capacity (watts) 600w 1000w 1400w 2000w
Temp Range +10 to +20°C +10 to +20°C +10 to +20°C +10 to +20°C
Electrical V/Ph 240/1 240/1 240/1 240/1
Run  Amps 7A 7.7A 11.8A 12.4A
Full Load Amps 7.3A 8.2A 13.8A 15.3A
Max Amb Temp 40°C 40°C 40°C 40°C
Refrig Type R404a R404a R404a R404a
Noice Level 39dB 39dB 39dB 39dB
Weight 13/33 kg 13/36 kg 19/61 kg 19/63 kg
