Gastronorm Underbench Glass Door Chiller

The under bar storage chillers are ideally suite for professional use in restaurants, bars, hotels, clubs and all high volume food preparation area’s. Suitable for storage of meat dairy products, vegetables and drinks.

  • Available in three sizes, double, triple and four door
  • Stainless steel or glass doors
  • 50mm insulation for increased energy efficiency
  • Forced air cooling ensures consistency of internal temperatures
  • Energy efficiency control of compressor run time and defrost
  • Essential cleaning made easy with removable shelf supports, coved internal corners and removable door seals
  • Adjustable stainless steel gastronorm shelving with anti-tilt protection
  • Self closing doors
  • Gastronorm 1 x 1 trays (530mm x 325mm)
  • Lockable front castors
  • Side mounted condenser has easy access door and removable wash dust filter
  • Adjustable Carel electronic controller provides:
    Ease of set temperature control
    Temperature display
    Alarm warning if condenser is blocked

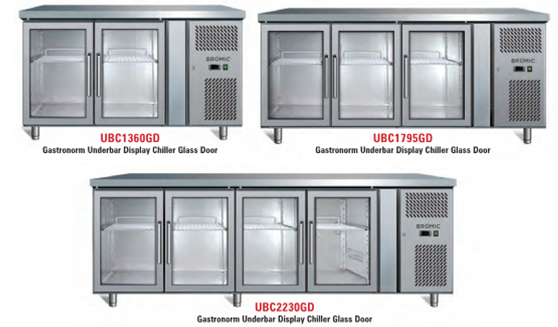

Code UBC1360GD UBC1795GD UBC2230GD
Capacity 282L 417L 553L
External Dimensions 1360w x700d x 860h 1795w x700d x 860h 2230w x700d x 860h
Internal Dimensions 902w x 530d x 589h 1337w x 530d x 589h 1772w x 530d x 589h
Temp range +2 to 8°C +2 to 8°C +2 to 8°C
Max ambient temp 32°C 32°C 32°C
Temp display Digital Digital Digital
Number of doors 2 3 4
Number of Shelves 2+2 2+2+2 2+2+2+2
Weight 100kg 137kg 157kg
Refrigerant R134a R134a R134a
Insulation Gas CFC Free CFC Free CFC Free
